About this item

• Standard C-Mount camera with Aptina CMOS sensor;
• With hardware resolution among 1.2M to 14M;
• On-board memory for perfect synchronization，higher frame rate and stable performance;
• High performance cooling structure, ensures low image noise;
• USB3.0 5 Gbps interface ensuring high frame rate;
• Ultra-Fine color engine with perfect color reproduction capability;
• With advanced video & image processing application ToupView;
• Windows/Linux/macOS/Android multiple platform SDK;

Product description

• RT30UY-3M comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc);
• The Camera can be widely used in brightfield light environment and microscope image capture and anaysis.

Product information

•  Sensor & Size(mm): 3.1M/AR0330(C)
                                   1/3" (4.51x3.37)
• Pixel(μm): 2.2x2.2
• G Sensitivity, Dark Signal: 1.9v/lux-sec
                                            100dB
                                            39dB;
• FPS/Resolution:  27.3@2048x1534
                             53.3@1024x770
• Binning:  1x1,
                 2x2,

• Exposure: 0.1ms~20000ms

Other Hardware Configuration

• Spectral Range: 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
• White Balance: ROI White Balance/ Manual Temp-Tint Adjustment
• Color Rendering Technique: Ultra Fine Color Engine
• Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc);
• Recording System: Still Picture and Movie
• Cooling System:  Natural

Operating Environment

• Operating Temperature(in Centidegree) -10°C~ 50°C
• Storage Temperature(in Centidegree) -20°C~ 60°C
• Operating Humidity 30~80%RH
• Storage Humidity: 10~60%RH
• Power Supply:  DC 5V over PC USB Port

Software Environment

• Operating System: Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)OSx (Mac OS X) Linux PC Requirements:
• CPU: Equal to Intel Core2 2.8GHz or Higher,                                                                  Memory: 4GB or More                                                                                            USB Port: USB2.0 High-speed Port                                                                          Display: 17'' or Larger                                                                                              CD-ROM

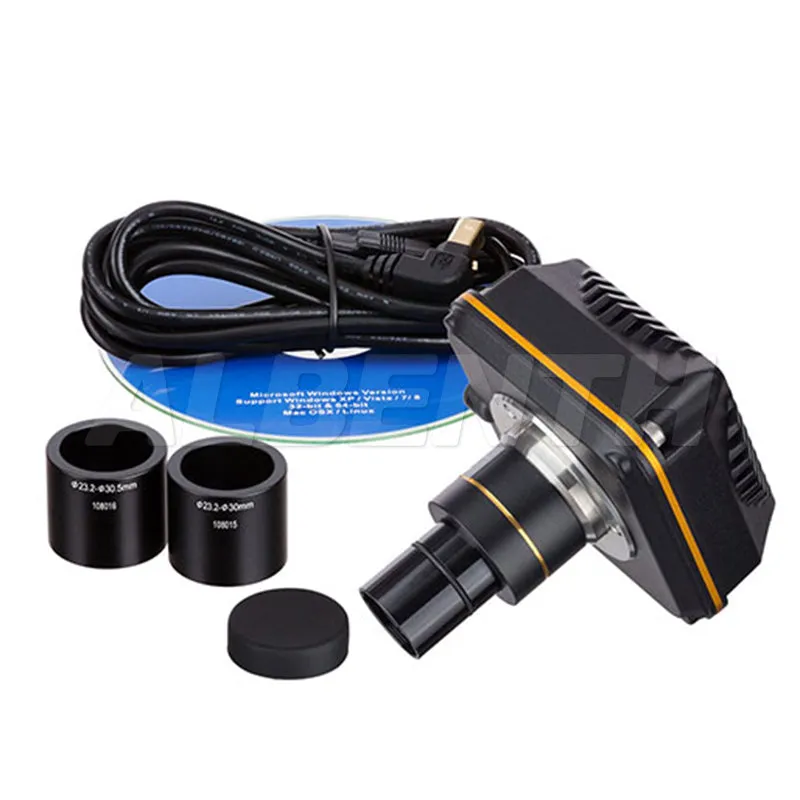

 What's in the Box ?

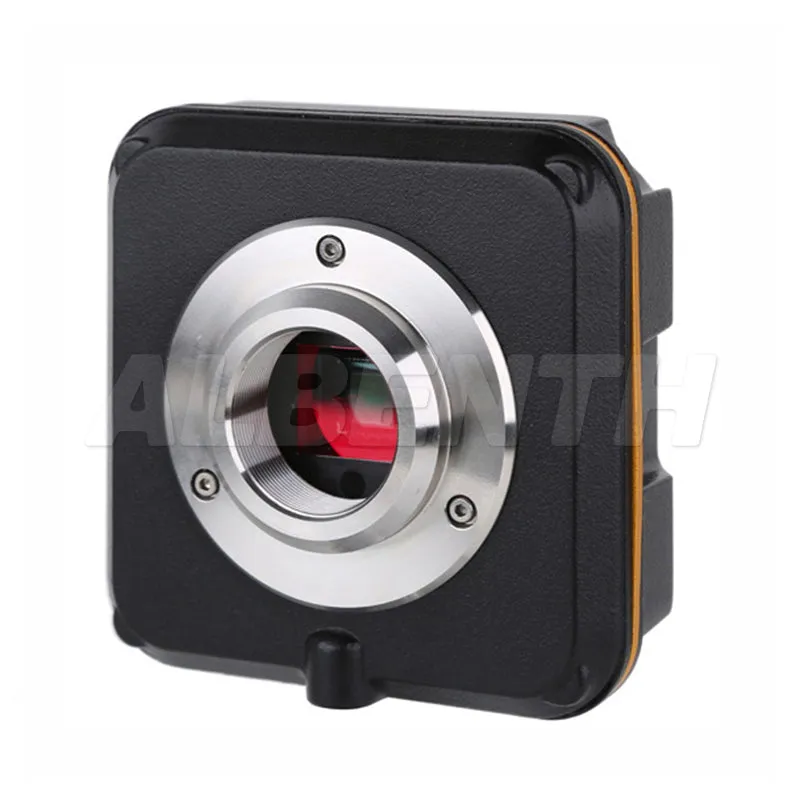

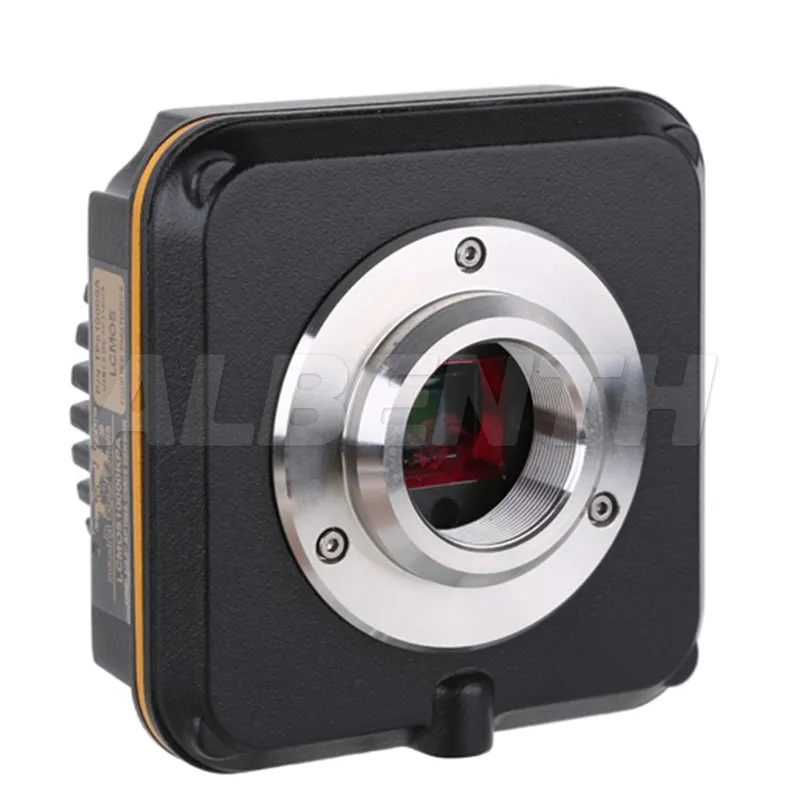

• 1 pc RT30UY-3M USB3.0 High-performance Color CMOS C-Mount Microscope Camera
• 1 pc High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
• 1 pc CD (Driver & utilities software, Ø12cm)
• 1 pc Fixed Reduction lens: 0. 5X ( For 23.2mm eyepieces tube)
• 1 pc Adaptor ring for 30mm eyepeices tube
• 1 pc Adaptor ring for 30.5mm eyepeices tube

Delivery time

• Around 2-3days

Shipping way

• Standard Free shipping By UPS, FedEx, TNT, DHL (Around 4-8days)
