Thin-R XT/TL Thermal Liner is an Xtratherm PIR core with a composite kraft facing bonded to a 12.5mm tapered edge plasterboard. The kraft facing on both sides incorporates a vapour control layer to help reduce the risk of condensation. It is designed to provide high levels of thermal insulation and drylining in one operation.

• Insulation and Drylining in one application.
• Effective Vapour Control Layer
• Reduced Insulation Thickness
• Zero ODP and GWP < 5.

• Thickness: 52.5mm (25mm PIR 12.5mm Plasterboard)
• Width: 1200mm
• Length: 2400mm
• Board coverage: 2.88 m²
• Board Profile: Tapered Edge - Plasterboard
• Square Edge - PIR
• Thermal Conductivity: 0.022 W/mK (PIR Only)
• R-Value: 1.10 m²K/W
• Fire Rating: Euroclass B-s1, d0

Application:

• Suitable for New Build and Refurbishment Projects.
• Suitable for Walls, Floors and Roofs.

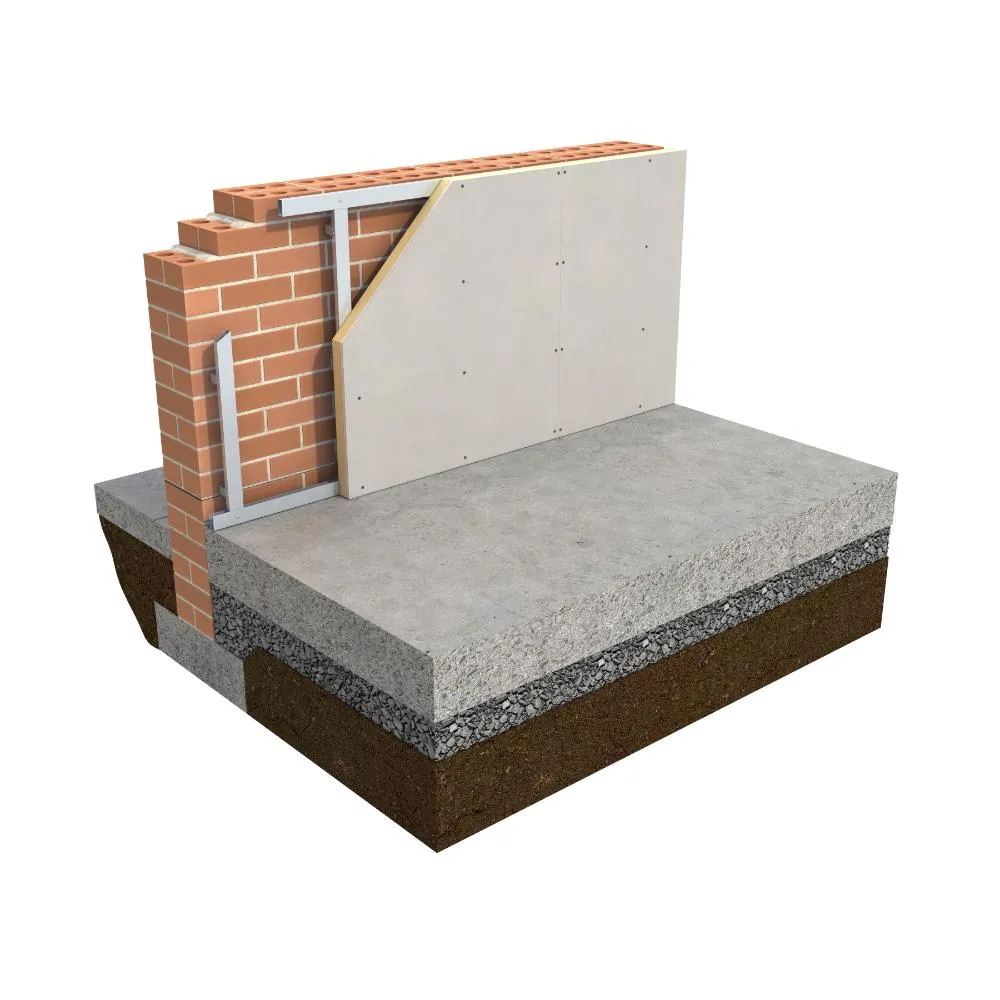

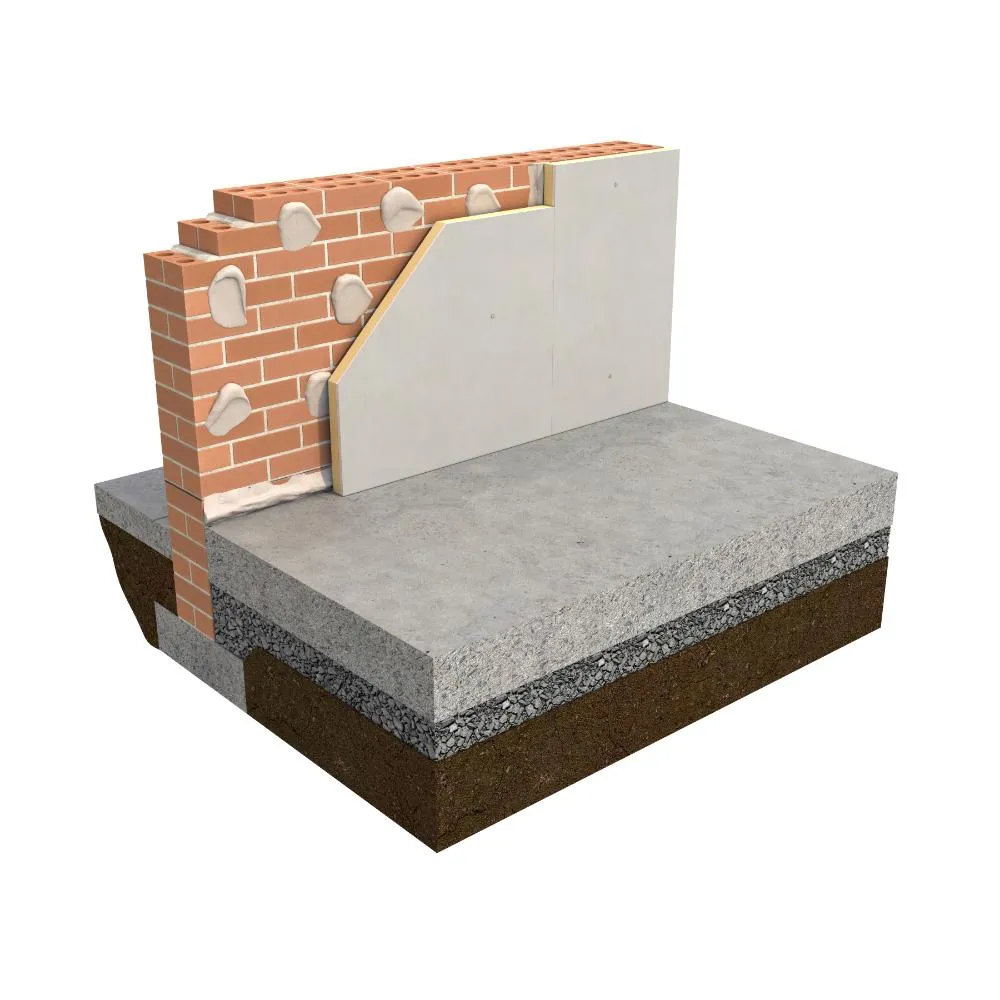

• Suitable for Mechanical Fixing or Dot & Dab.

Certification:

• ISO9001 - Quality Management Systems
• ISO14001 - Environmental Management
• A  rating on BRE Green Guide
• BBA Certification No. 04/4130
