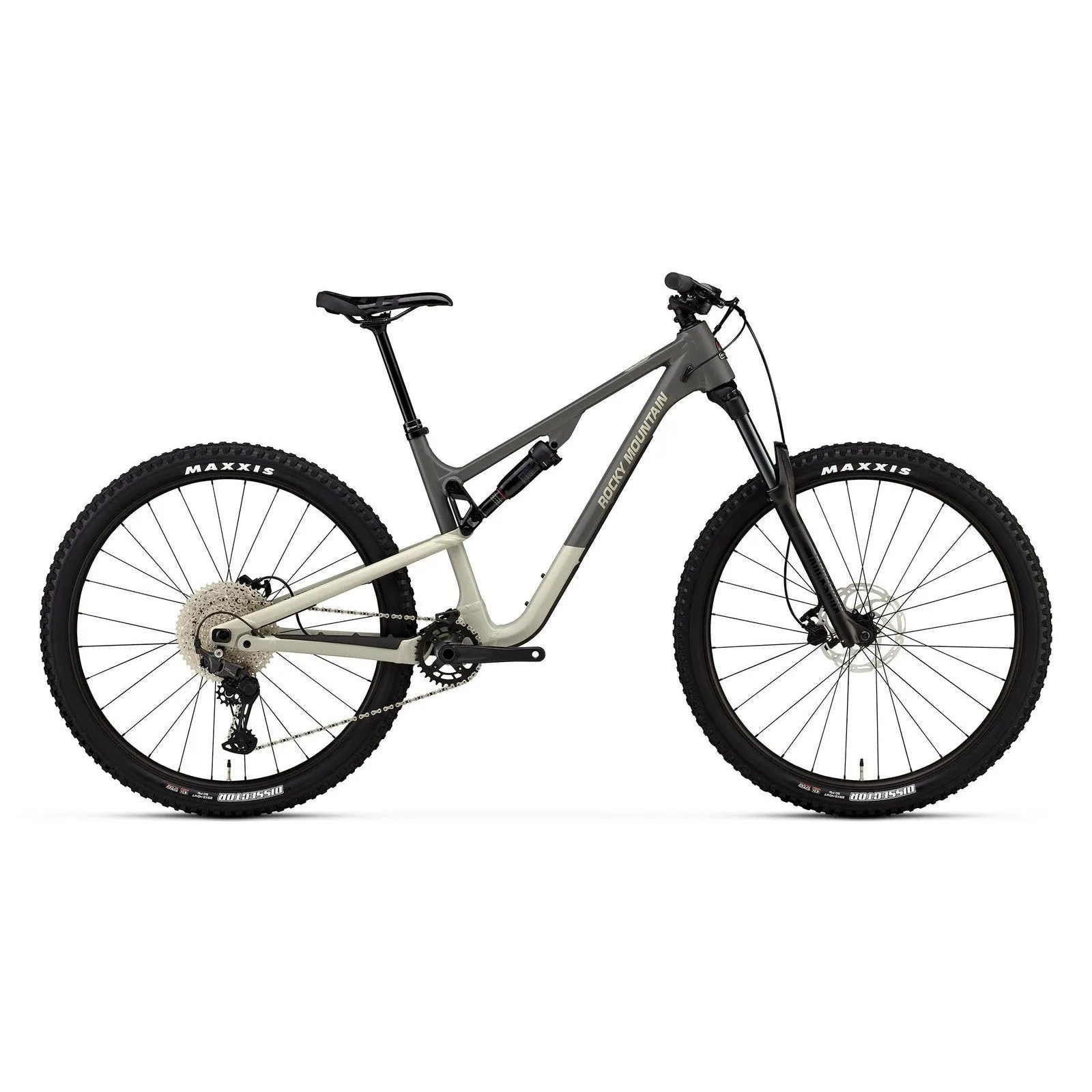

In search of a quiver-killer? we’ve got you covered with the Instinct Alloy. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.

Intended use: Trail

Rear travel: 140

Frame: FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle
Fork: RockShox Recon Silver RL 150mm | 42mm Offset
Front Travel: 150
Shock: RockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Rear Travel: 140
Headset: FSA ZS56|66 Reach Adjust| 0mm Cups Installed | /- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem: Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm
Handlebar: Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips: Rocky Mountain Lock On Light
Brakes: Tektro HD-M275 | Shimano Pad Compatible
Shifters: Shimano CUES 11spd
Rear Derailleur: Shimano CUES 11spd
Cranks & Chainring: Rocky Mountain Microdrive | 32T | Sram 76mm BCD | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm
Bottom Bracket: Rocky Mountain Sealed BB92 - Shimano Compatible
Cassette: SunRace CSMS8 EA1 11-51T
Chain: KMC X11-1
Front Hub: Shimano TC500 | 15x110m | 28H
Rear Hub: Shimano TC500 Boost 148mm | 28H
Spokes: 2.0 Stainless
Rims: Rocky Mountain TR30 Tubeless | 28H / Tubeless Compatible - Tape / Valves / Sealant Not Incl
Tires: F: Maxxis Dissector 2.4 WT EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT EXO Tubeless Ready
Seatpost: X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD - LG = 170mm | XL = 200mm
Saddle: WTB Volt 142
Weight: 36.498|16.59 KGS
